Package csheets.ext.simple

Provides an example of how to build a simple extension.

See: Description

Class Summary

Class	Description
ExtensionExample	A simple extension just to show how the extension mechanism works.

Package csheets.ext.simple Description

Provides an example of how to build a simple extension. An extension is a class that extends the class Extension. CleanSheets dynamically loads all the extensions that it finds declared in the following property files: res/extensions.props and extensions.props. For the simple extension to be loaded at startup a line with the fully qualified name of the simple extension class must be present in one of the property files. The fully qualified name of the simple extension is: csheets.ext.simple.ExtensionExample

Class Diagram

Sequence Diagrams illustrating the setup of the extension

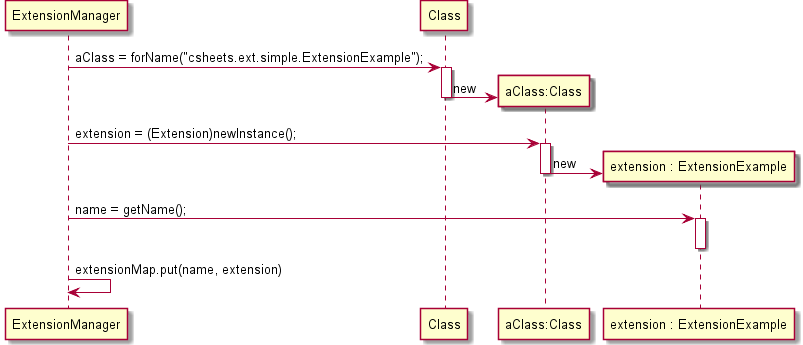

The following sequence diagram illustrates the creation of the simple extension. All the extensions are loaded dynamically by the ExtensionManager at application startup.

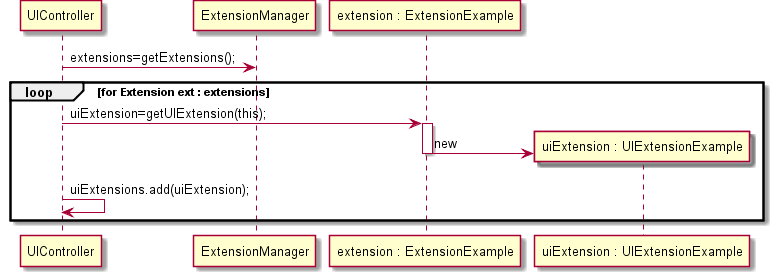

The following sequence diagram illustrates the creation of the user interface extension. All the UI extensions are loaded by the UIController at application startup.

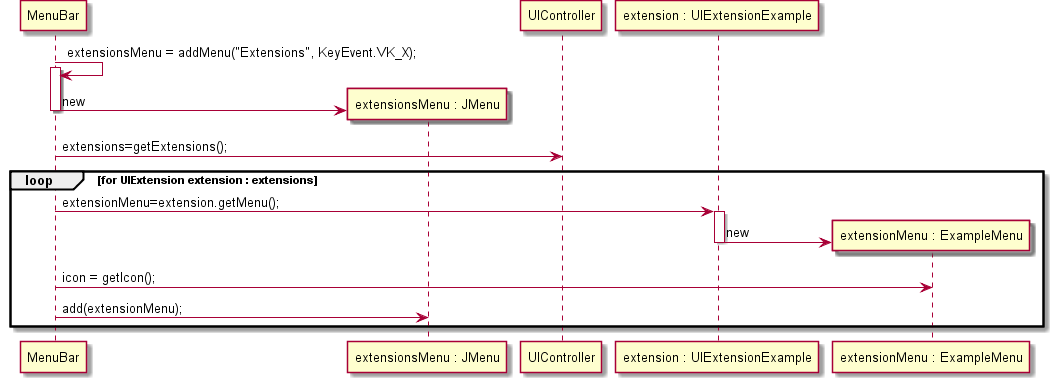

The following sequence diagram illustrates the creation of the menu extension. All the menu extensions are loaded by the MenuBar at application startup.

Sequence Diagrams illustrating use cases of the extension

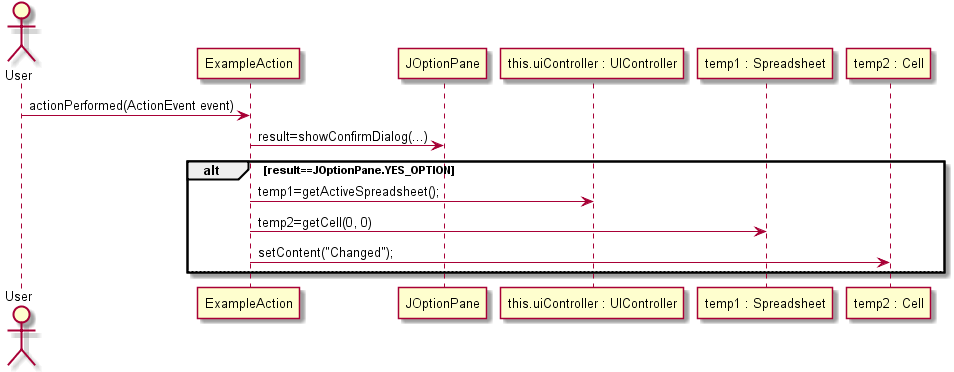

The following sequence diagram illustrates the use case "Set the contents of the A1 cell".
To be noticed that the operation actionPerformed does not originate directly from the User. There are several other classes involved that are not depicted for clarity purposes.

Author:

Alexandre Braganca
